Panduit PN18-6F-M

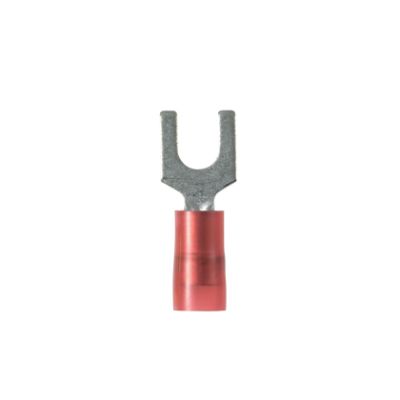

Panduit Pan-Term PN18-6F-M Loose Piece Fork Terminal, #18 Conductor, 0.78 in L, Sleeve/Standard/Internal Serration Barrel, Copper, Red
Ring Terminals
4180571
PN18-6F-M
Panduit
$0.00
/ ea
- Barrel Type: Sleeve/Standard/Internal Serration
- Color: Red
- Conductor size: #18
- Conductor Type: Copper Stranded
- Finish: Tin Plated
- Length: 0.78
- Material: Copper
- Series: PN-F
- Specifications: 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, 0.22 in Mounting Hole, Fork Shape Enclosure
- Stud Size: #6
- Temperature Rating: 221
- Tongue Size: 0.3 in W x 0.03 in THK
- Tongue Type: Standard Fork
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PN-F, Copper Stranded Conductor, #18 Conductor, #6 Stud, 0.78 in Length, Internal Serration/Sleeve/Standard Barrel, Standard Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.08 to 0.145 in Dia Nylon Insulation, 0.2 in Clearance, 0.22 in Mounting Hole, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Locks in place for secure connection
- Non-expanded insulation
