Panduit PNF10-10F-L

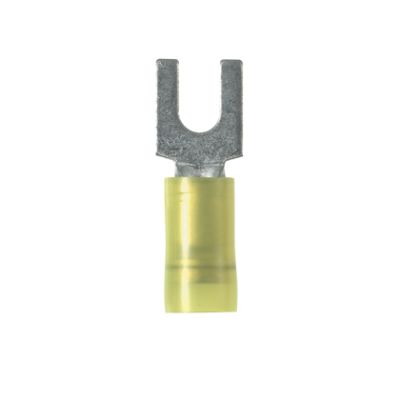

Panduit Pan-Term PNF10-10F-L Loose Piece Fork Terminal, #10 Conductor, 1.04 in L, Funnel Entry/Sleeved Barrel, Copper, Yellow
Ring Terminals
552052 PNF10-10F-L
Panduit
$0.00 / ea

Panduit PNF10-10F-L
  • Barrel Type: Funnel Entry/Sleeved
  • Color: Yellow
  • Conductor size: #10
  • Conductor Type: Copper Stranded
  • Finish: Tin Plated
  • Length: 1.04
  • Material: Copper
  • Series: PNF-F
  • Specifications: 9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure
  • Stud Size: #10
  • Temperature Rating: 221
  • Tongue Size: 0.37 in W x 0.04 in THK
  • Tongue Type: Fork
  • Type: Loose Piece
  • Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #10 Conductor, #10 Stud, 1.04 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.225 in Dia Nylon Insulation, 0.24 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
QTY
Add to Wishlist
  • Features
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Flange design provides extra secure connection on a variety of applications
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
