Panduit PNF14-10F-C

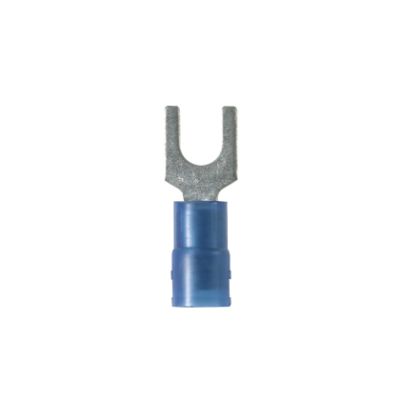

Panduit Pan-Term PNF14-10F-C Loose Piece Fork Terminal, #14 Conductor, 0.87 in L, Funnel Entry/Sleeved Barrel, Copper, Blue
Ring Terminals
6847819 PNF14-10F-C
Panduit
$0.00 / ea

Panduit PNF14-10F-C
  • Barrel Type: Funnel Entry/Sleeved
  • Color: Blue
  • Conductor size: #14
  • Conductor Type: Copper Stranded
  • Finish: Tin Plated
  • Length: 0.87
  • Material: Copper
  • Series: PNF-F
  • Specifications: 5/16 in L Wire Strip, 0.162 in Dia Nylon Insulation, 0.26 in Clearance, Fork Shape Enclosure
  • Stud Size: #10
  • Temperature Rating: 221
  • Tongue Size: 0.34 in W x 0.03 in THK
  • Tongue Type: Fork
  • Type: Loose Piece
  • Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-F, Copper Stranded Conductor, #14 Conductor, #10 Stud, 0.87 in Length, Funnel Entry/Sleeved Barrel, Fork Tongue, 0.34 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.162 in Dia Nylon Insulation, 0.26 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Fork design provides for fast and easy installation, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Locks in place for secure connection insulation support helps to prevent wire damage in bending applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Flange design provides extra secure connection on a variety of applications
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
