Panduit PNF14-8R-M

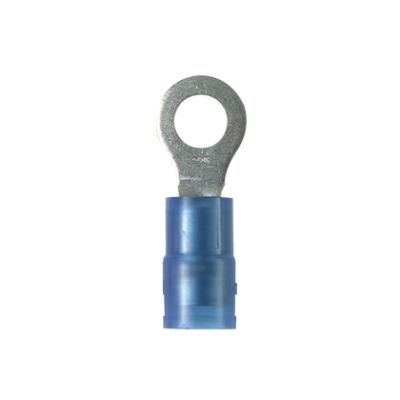

Panduit Pan-Term PNF14-8R-M Type PNF-R Ring Terminal, 14 AWG Conductor, 0.87 in L, Funnel Entry/Insulation Grip Sleeve Barrel, Copper, Blue
Ring Terminals
7457813 PNF14-8R-M
Panduit
$0.00 / ea

Panduit PNF14-8R-M
  • Barrel Type: Funnel Entry/Insulation Grip Sleeve
  • Color: Blue
  • Conductor size: 14
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 0.87
  • Material: Copper
  • Specifications: 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
  • Stud Size: #8
  • Temperature Rating: 221
  • Tongue Size: 0.31 in W x 0.03 in THK
  • Tongue Type: Ring
  • Type: Type PNF-R
  • Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Type PNF-R, Solid/Stranded Conductor, 14 AWG Conductor, #8 Stud, 0.87 in Length, Funnel Entry/Insulation Grip Sleeve Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 1/4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Insulation support helps to prevent wire damage in bending applications
  • Ring tongue design assures a secure connection in high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Internal barrel serrations assure good wire contact and maximum tensile strength
