Panduit PV14-12R-L

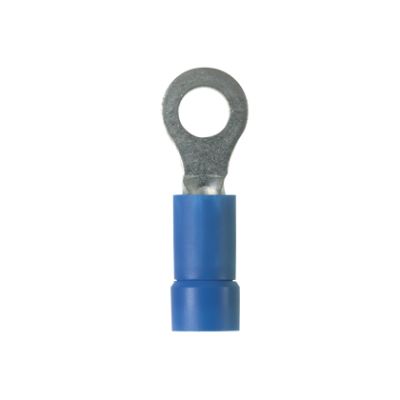

Panduit Pan-Term PV14-12R-L Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.42 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Blue
Ring Terminals
5776144
PV14-12R-L
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry/Insulation Support
- Color: Blue
- Conductor size: 14
- Conductor Type: Solid/Stranded
- Finish: Tin Plated
- Length: 1.42
- Material: Copper
- Specifications: 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
- Stud Size: 1/2
- Temperature Rating: 221
- Tongue Size: 0.72 in W x 0.03 in THK
- Tongue Type: Ring
- Type: Type PV-R Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Type PV-R Loose Piece, Solid/Stranded Conductor, 14 AWG Conductor, 1/2 in Stud, 1.42 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.72 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.17 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
- Features
- Funneled barrel entry
- Deep internal serrations
- Made of copper and has electro-tin plating for corrosion resistance
