Panduit PV14-56RX-L

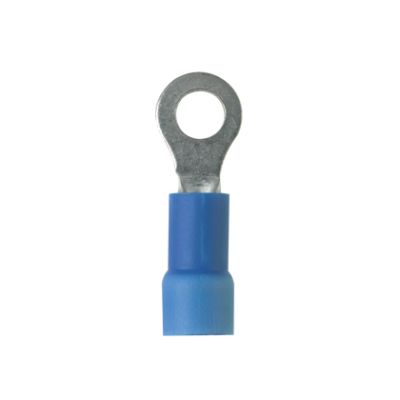

Panduit Pan-Term PV14-56RX-L Type PV-RX Loose Piece Ring Terminal, 16 to 14 AWG Conductor, 1.16 in L, Brazed Seam/Expanded Entry/Insulation Support/Insulation Grip Sleeve Barrel, Copper, Blue
Ring Terminals
6977612 PV14-56RX-L
Panduit
$0.00 / ea

Panduit PV14-56RX-L
  • Barrel Type: Brazed Seam/Expanded Entry/Insulation Support/Insulation Grip Sleeve
  • Color: Blue
  • Conductor size: 16 to 14
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 1.16
  • Material: Copper
  • Specifications: 0.2 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.37 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
  • Stud Size: 5/16
  • Temperature Rating: 221
  • Tongue Size: 0.46 in W x 0.03 in THK
  • Tongue Type: Ring
  • Type: Type PV-RX Loose Piece
  • Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Type PV-RX Loose Piece, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 5/16 in Stud, 1.16 in Length, Brazed Seam/Expanded Entry/Insulation Support/Insulation Grip Sleeve Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 0.2 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.37 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
QTY
Add to Wishlist
  • Features
  • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
  • Ring tongue design assures a secure connection in high vibration applications
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
