Panduit PV18-10LF-CY

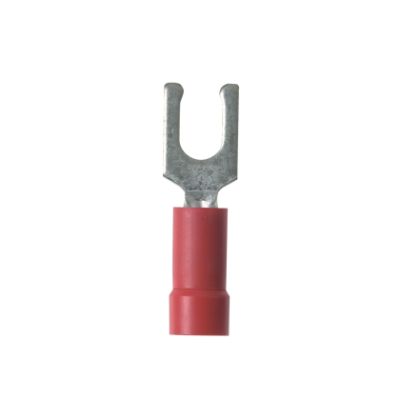

Panduit Pan-Term PV18-10LF-CY Loose Piece Fork Terminal, #18 Conductor, 0.97 in L, Brazed Seam/Funnel Entry/Internal Serration Barrel, Copper, Red
Ring Terminals
6798852
PV18-10LF-CY
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry/Internal Serration
- Color: Red
- Conductor size: #18
- Conductor Type: Copper Solid/Stranded
- Finish: Tin Plated
- Length: 0.97
- Material: Copper
- Series: PV-LF
- Specifications: 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole, 1/4 in Clearance, Fork Shape Enclosure
- Stud Size: #10
- Temperature Rating: 221
- Tongue Size: 0.33 in W x 0.03 in THK
- Tongue Type: Locking Fork
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-LF, Copper/Solid/Stranded Conductor, #18 Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Funnel Entry/Internal Serration Barrel, Locking Fork Tongue, 0.33 in W x 0.03 in THK Tongue, 600 V, Specifications: 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
