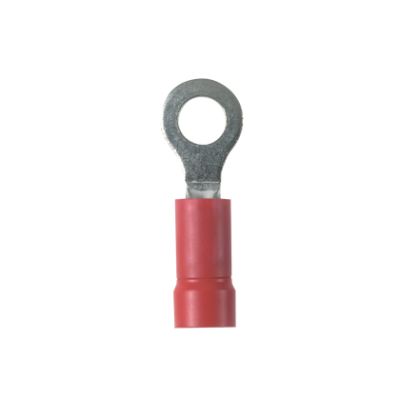

Panduit PV18-12R-LY

Panduit Pan-Term PV18-12R-LY Type PV-R Ring Terminal, 22 to 18 AWG Conductor, 1.42 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve Barrel, Copper, Red
Ring Terminals
6977613 PV18-12R-LY
Panduit
$0.00 / ea

Panduit PV18-12R-LY
  • Barrel Type: Brazed Seam/Funnel Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve
  • Color: Red
  • Conductor size: 22 to 18
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 1.42
  • Material: Copper
  • Specifications: 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
  • Stud Size: 1/2
  • Temperature Rating: 221
  • Tongue Size: 0.72 in W x 0.03 in THK
  • Tongue Type: Ring
  • Type: Type PV-R
  • Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, 1/2 in Stud, 1.42 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration/Insulation Grip Sleeve Barrel, Ring Tongue, 0.72 in W x 0.03 in THK Tongue, 600 VAC, 0.15 in Dia Vinyl Insulation, 0.31 in Mounting Hole Size, 0.53 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Ring tongue design assures a secure connection in high vibration applications
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
