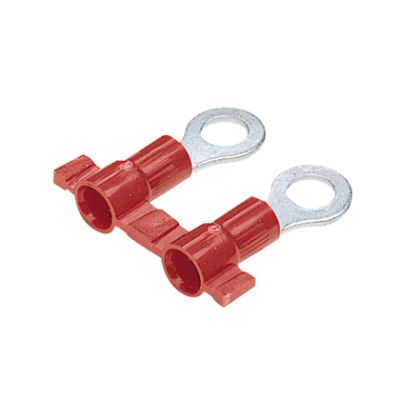

Panduit PV18-14RB-3K
Panduit Reel Smart Ring Terminal, Type PV-RB, Solid/Stranded Conductor, 18 AWG Conductor, 1/4 in Stud, 1.06 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.45 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.15 in Dia Vinyl Insulation, 0.38 in Clearance, 1/4 in L Wire Strip, 1/4 in Mounting Hole Size, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
Supporting Information
- Ring tongue design assures a secure connection in high vibration applications|Internal barrel serrations assure good wire contact and maximum tensile strength|Insulation support helps to prevent wire damage in bending applications|Expanded wire entry designed to accommodate wire with a larger insulation thickness|Brazed seam protects terminal barrel from splitting during the crimp process
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
- Brand: PanduitBarrel Type: Brazed Seam/Insulation Support/Funnel Entry/Internal SerrationColor: RedConductor size: 18Conductor Type: Solid/StrandedFinish: Tin PlatedLength: 1.06Material: CopperSpecifications: 0.15 in Dia Vinyl Insulation, 0.38 in Clearance, 1/4 in L Wire Strip, 1/4 in Mounting Hole Size, Ring Shape EnclosureStud Size: 1/4Temperature Rating: 221
