Panduit PV18-6FB-3K

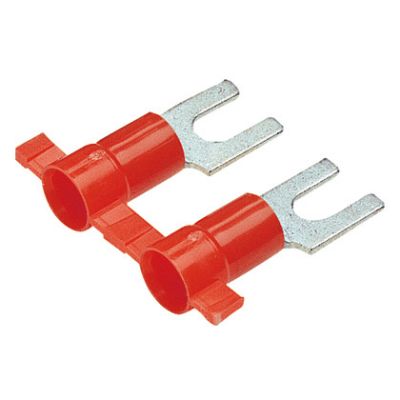

Panduit Pan-Term Reel Smart PV18-6FB-3K Reel-Fed Fork Terminal, #18 Conductor, 0.78 in L, Butted Seam/Funnel Entry Barrel, Copper, Red
Ring Terminals
30304
PV18-6FB-3K
Panduit
$0.00
/ ea
- Barrel Type: Butted Seam/Funnel Entry
- Color: Red
- Conductor size: #18
- Conductor Type: Copper Stranded
- Finish: Tin Plated
- Length: 0.78
- Material: Copper
- Series: PV-FB
- Specifications: 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.2 in Clearance, Fork Shape Enclosure
- Stud Size: #6
- Temperature Rating: 221
- Tongue Size: 0.3 in W x 0.03 in THK
- Tongue Type: Fork
- Type: Reel-Fed
- Voltage Rating: 600
Panduit Pan-Term Reel Smart Fork Terminal, Reel-Fed, Series: PV-FB, Copper Stranded Conductor, #18 Conductor, #6 Stud, 0.78 in Length, Butted Seam/Funnel Entry Barrel, Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 600 V, Specifications: 1/4 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.2 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
- Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
