Panduit PV18-6R-MY

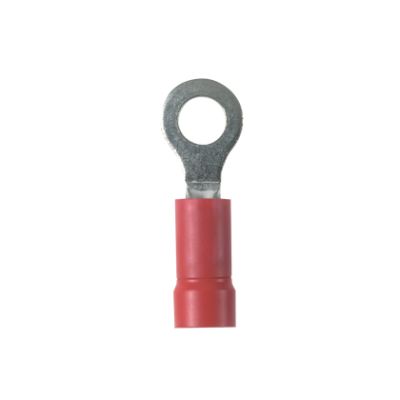

Panduit Pan-Term PV18-6R-MY Type PV-R Ring Terminal, 18 AWG Conductor, 0.86 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Red
Ring Terminals
6798681 PV18-6R-MY
Panduit
$0.00 / ea

Panduit PV18-6R-MY
  • Barrel Type: Brazed Seam/Funnel Entry/Insulation Support/Internal Serration
  • Color: Red
  • Conductor size: 18
  • Conductor Type: Solid/Stranded
  • Finish: Tin Plated
  • Length: 0.86
  • Material: Copper
  • Specifications: 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
  • Stud Size: #6
  • Temperature Rating: 221
  • Tongue Size: 0.25 in W x 0.03 in THK
  • Tongue Type: Ring
  • Type: Type PV-R
  • Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Type PV-R, Solid/Stranded Conductor, 18 AWG Conductor, #6 Stud, 0.86 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.25 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.15 in Dia Vinyl Insulation, 0.22 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • One hole with inspection hole
  • Insulug type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper, EPR and other elastic or hard to grip insulations
  • EPR and other elastic or hard to grip Insulations
  • The metal fingers firmly grip the insulation providing superior holding characteristics
  • Cable support and strain relief
  • Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
  • Multi-finger insulation grip provides superior insulation holding characteristics
  • Especially on epr and other elastic-type insulations
  • Brazed seam provides stronger more durable termination
  • Manufactured of pure electrolytic copper provides maximum conductivity
  • Low resistance and ductility for excellent crimp forming properties
  • Deep V groove
  • Inner barrel serrations provide optimum conductivity
  • For heavy duty industrial, utility and military power and control-circuit applications
  • Pure electrolytic copper
