Panduit PV18-8FF-CY

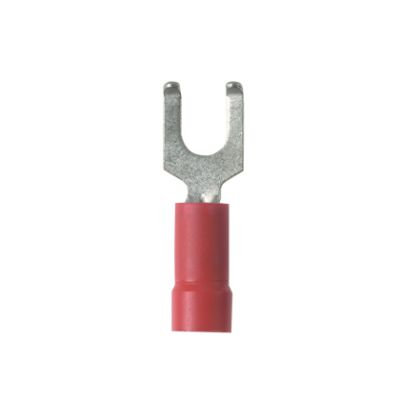

Panduit Pan-Term PV18-8FF-CY PV-FF Loose Piece Fork Terminal, #16 Conductor, 0.94 in L, Brazed Seam/Funnel Entry Barrel, Copper, Red
Ring Terminals
6798686 PV18-8FF-CY
Panduit
$0.00 / ea

Panduit PV18-8FF-CY
  • Barrel Type: Brazed Seam/Funnel Entry
  • Color: Red
  • Conductor size: #16
  • Conductor Type: Copper Stranded
  • Finish: Tin Plated
  • Length: 0.94
  • Material: Copper
  • Series: PV-FF
  • Specifications: 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure
  • Stud Size: #8
  • Temperature Rating: 221
  • Tongue Size: 0.31 in W x 0.032 in THK
  • Tongue Type: Flanged
  • Type: Loose Piece
  • Voltage Rating: 600
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PV-FF, Copper Stranded Conductor, #16 Conductor, #8 Stud, 0.94 in Length, Brazed Seam/Funnel Entry Barrel, Flanged Tongue, 0.31 in W x 0.032 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.15 in Dia Vinyl Insulation, 0.23 in Clearance, 0.31 in Mounting Hole, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
QTY
Add to Wishlist
  • Features
  • Fork design provides for fast and easy installations, without the need to remove fastener
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
  • Brazed seam protects terminal barrel from splitting during the crimp process
  • Barrel of terminal internally beveled to provide quick and easy wire insertion
  • Flanges make re-securing a loose terminal easier
  • The flanges on the end of the fork terminal aid in preventing a slightly loose terminal from becoming fully disconnected from the screw
  • For Y10D, Y10-22 plier and MRE1022NV MR8-89-1 ratcheting installations tooling
