Panduit PV4-38RX-E

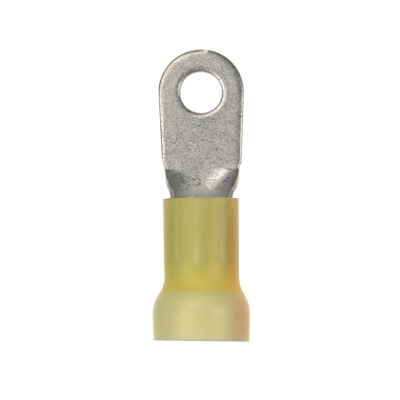

Panduit Pan-Term PV4-38RX-E Loose Piece Ring Terminal, 4 AWG Conductor, 1.94 in L, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Copper, Yellow
Ring Terminals
7061321
PV4-38RX-E
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Expanded Entry/Insulation Support/Internal Serration
- Color: Yellow
- Conductor size: 4
- Conductor Type: Stranded
- Finish: Tin Plated
- Length: 1.94
- Material: Copper
- Series: PV-RX
- Specifications: 1/2 in L Wire Strip, 0.53 in Clearance, 0.515 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure
- Stud Size: 3/8
- Temperature Rating: 221
- Tongue Size: 0.68 in W x 0.05 in THK
- Tongue Type: Ring
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-RX, Stranded Conductor, 4 AWG Conductor, 3/8 in Stud, 1.94 in Length, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 600 V, Specifications: 1/2 in L Wire Strip, 0.53 in Clearance, 0.515 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
- Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
