Panduit PV6-14R-T

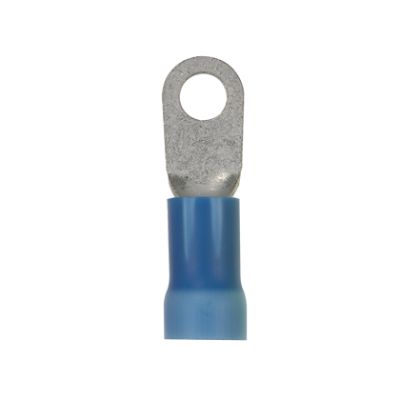

Panduit Pan-Term PV6-14R-T Loose Piece Ring Terminal, 6 AWG Conductor, 1.65 in L, Brazed Seam/Funnel Entry Barrel, Copper, Blue
Ring Terminals
4180992
PV6-14R-T
Panduit
$0.00
/ ea
- Barrel Type: Brazed Seam/Funnel Entry
- Color: Blue
- Conductor size: 6
- Conductor Type: Stranded
- Finish: Tin Plated
- Length: 1.65
- Material: Copper
- Series: PV-R
- Specifications: 7/16 in L Wire Strip, 0.48 in Clearance, 0.34 in Dia Vinyl Insulation, 0.43 in Mounting Hole, Ring Shape Enclosure
- Stud Size: 1/4
- Temperature Rating: 221
- Tongue Size: 0.47 in W x 0.05 in THK
- Tongue Type: Ring
- Type: Loose Piece
- Voltage Rating: 600
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.65 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 600 V, Specifications: 7/16 in L Wire Strip, 0.48 in Clearance, 0.34 in Dia Vinyl Insulation, 0.43 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
- Features
- Terminals are self-insulated with a PVC (Vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
- Made of copper and has electro-tin plating for corrosion resistance
- Brazed seam barrel that is serrated to obtain high pullout value
- On Mylar tape
