Panduit PV8-8R-QY

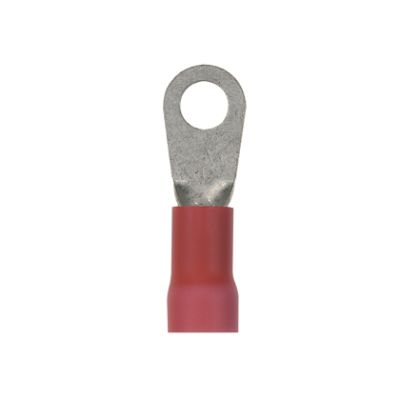

Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 8 AWG Conductor, #8 Stud, 1.51 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.42 in W x 0.04 in THK Tongue, 600 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, 0.28 in Dia Vinyl Insulation, 0.38 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
Supporting Information
- Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties|The terminal is rated 105 deg C and meets SAE-AS7928 requirements|Insulation will not move or twist off|The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection|Tin electroplated provides durable long lasting resistance to corrosion|Nylon insulation is locked in place insulation will not move or twist off|300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions|Color-coded provides quick, easy wire size connector selection|Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection|High dielectric strength and stability in demanding oily environmental conditions
- Manufactured from one piece pure electrolytic copper provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties
- The terminal is rated 105 deg C and meets SAE-AS7928 requirements
- Insulation will not move or twist off
- The nylon insulated seamless, electrolytic copper barrel with double thick tongue provides an extra strong insulated connection
- Tin electroplated provides durable long lasting resistance to corrosion
- Nylon insulation is locked in place insulation will not move or twist off
- 300 V nylon insulation- high dielectric strength and stability in demanding oily environmental conditions
- Color-coded provides quick, easy wire size connector selection
- Double thick tongue provides maximum reliability and electrical capacity plus an extra strong terminal tongue, color code provides quick, easy wire size connector selection
- High dielectric strength and stability in demanding oily environmental conditions
- Brand: PanduitBarrel Type: Brazed Seam/Funnel EntryColor: RedConductor size: 8Conductor Type: StrandedFinish: Tin Plated
