Ideal 83-9511

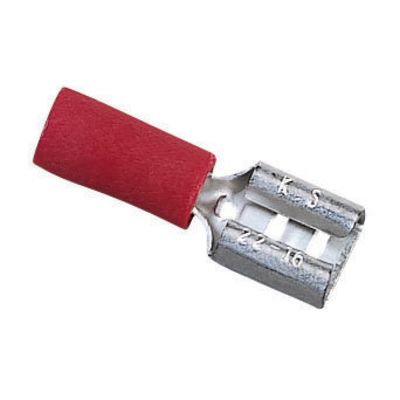

IDEAL 83-9511 Female Disconnect Terminal, 22 to 18 AWG Conductor, 0.11 x 0.02 in Tab, Shouldered Barrel, Brass, Red
Terminal Female Disconnects
7064052 83-9511
Ideal
$0.00 / ea

Ideal 83-9511
  • Barrel Type: Shouldered
  • Color: Red
  • Conductor size: 22 to 18
  • Dimensions: 0.728 in L x 0.126 in W
  • Finish: Tin Plated
  • Insulated: Insulated
  • Material: Brass
  • Specifications: 0.15 in Dia Insulation
  • Tab Size: 0.11 x 0.02
  • Temperature Rating: 75
  • terminal type: Crimp
  • Voltage Rating: 300
IDEAL, Disconnect Terminal, Vinyl Insulated, Wire Size: 22 - 18 AWG, Voltage Rating: 300 V, Material: Brass, Finish: Tin-Plated, Insulation: 0.150 IN Diameter, Connection: Female, Tab Size: 0.110 IN X 020 IN, Temperature Rating: 75 DEG C
QTY
Add to Wishlist
  • Features
  • Butted seam-construction prevents splitting under maximum pressure
  • Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
  • Tin plated brass construction for corrosion-resistance
  • Shouldered barrel insulation quickly positions terminal for proper crimping
  • Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
  • Brazed or butted seams prevent splitting
  • Funnel entry insulators
  • Beveled barrel openings provide easy wire entry
  • Clearly marked wire and stud ranges
  • Color coded insulation
