Woodhead 92443

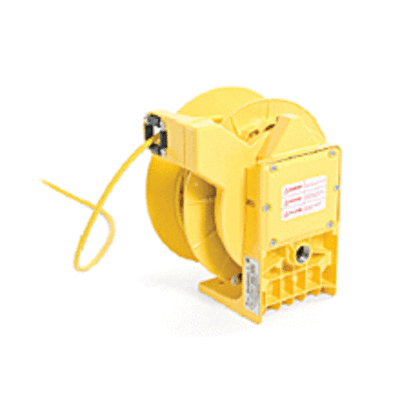

Woodhead® POW-R-MITE® Cable Reel, Series: 130083, 600 VAC, 14 A, 40 ft Cord Length, 12 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 9.62 in W x 13.5 in D x 14.5 in H Dimensions
Supporting Information
- NEMA 4 enclosure provides protection to water or dust, indoor and out|Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application|Design prohibits annoying lock-out when cable is fully extended|Containerized main spring allow for safe, simple handling and replacement|Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag|1 in NPT primary cable entry|Cast aluminum with yellow powder coat finish construction|Working end, flying leads and ball stop not included|Easily disengaged as needed ratchet lock|Easily adjusted tension|Large, easy access spring junction box|12/4 SOW cable
- NEMA 4 enclosure provides protection to water or dust, indoor and out
- Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
- Design prohibits annoying lock-out when cable is fully extended
- Containerized main spring allow for safe, simple handling and replacement
- Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
- 1 in NPT primary cable entry
- Cast aluminum with yellow powder coat finish construction
- Working end, flying leads and ball stop not included
- Easily disengaged as needed ratchet lock
- Easily adjusted tension
- Large, easy access spring junction box
- 12/4 SOW cable
- Brand: WoodheadAmperage Rating: 14Color: YellowConductor size: 12Cord Length: 40Dimensions: 9.62 in W x 13.5 in D x 14.5 in HGrade: Industrial
