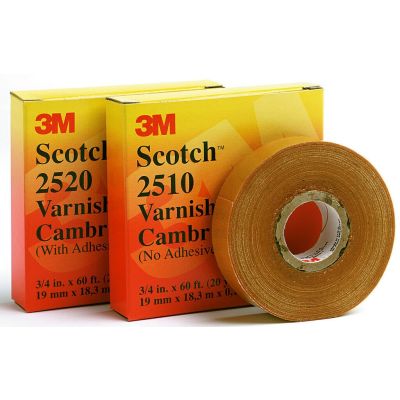

3M 7000031629
Scotch, 7000031629, Cambric Tape, Series: 2520, 60 ft Length, 3/4 in Width, 8 mil Thickness, Varnish Cambric Fabric, Black, Rubber Resin Adhesive, Cotton Cloth Backing, 8 in-oz on Backing, 13 in-oz on Steel Adhesion Strength, 800 V/mil Dielectric Strength, 50 lb Tensile Strength, 221 deg F Maximum Operating, Specifications Met: ASTM D1000, ASTM D374, ASTM D295
Supporting Information
- Straight cut woven cotton cambric fabric, oil primed and coated with a high grade yellow electrical insulating varnish|Non-corrosive adhesive on 2520 tape, adhesive holds film in position until the jacket is applied|High puncture, abrasion and cut-through resistance|Electrical properties are stable up to 105 deg C|Excellent dielectric strength with high puncture and cut through resistance|Scotch tape 2520 is an 8 mil thick, highly conformable, premium grade tape that's suitable for bus bars, motor leads and service drop connections|Provides excellent tensile strength|Flexible, electrically insulating and moisture-resistant with a smooth finish|Varnish cambric tapes are rated for Class A|Pressure sensitive adhesive holds tape in position after application
- Brand: 3M
