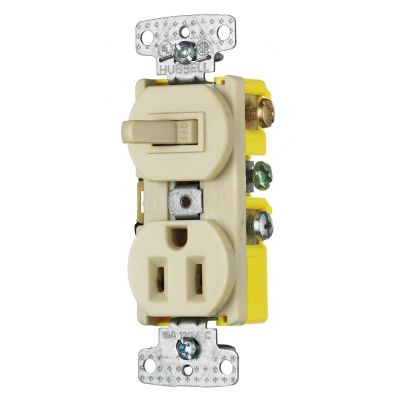

Hubbell Wiring RC108I
One Single-Pole Toggle One Single Receptacle Combination Device, Residential 15A 120V AC, Self Grounding, Side Wired
Supporting Information
- Low profile, less than 1 in depth
- Self-grounding feature is standard
- Combination devices provide compact switches in a 1-gang opening
- Smooth toggle action
- Multiple drive slot/Phillips/Robertson head screws
- Hi-visibility yellow base for easy installation
- -20 to 60 deg C operating temperature without impact
- 2-pole receptacle
- Elongated strap with continuous plaster ears
- Snap switch action
- Two position contact configuration
- 30,000 minimum operating cycles
- 1800 W wattage
- Silver switch contacts, zinc plated steel bridge, center fasteners and mounting screw, plastic base, cover, toggle, spring housing and washers
- Stainless steel grounding spring, brass rocker contact and terminal, steel spring
- Brand: Hubbell WiringColor: IvoryDimensions: 1.32 in W x 1.46 in x 4.2 in HElectrical Ratings: 15 A at 120/125 VACEnclosure: NEMA 5-15RGrade: ResidentialGrounding Style: Self-GroundingMounting: ThreadedNumber of Poles: 1Number Of Wires: 3Series: Traditional
