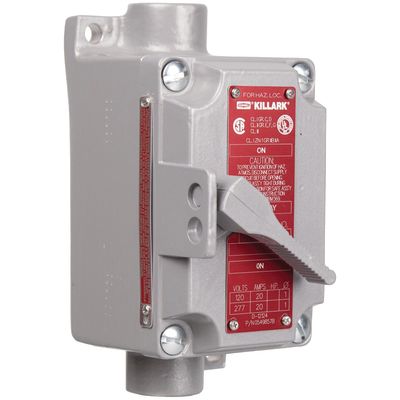

Hubbell Killark XS-52D
Killark XS-52D 1-Phase Feed-Thru Tumbler Switch Complete Unit With Box, Cover, Switch, 120/277 VAC, 30 A, 50/60 Hz, 1 hp at 120 VAC, 2 hp at 240 VAC
General Purpose Switches
7702361
XS-52D
Hubbell Killark
$0.00
/ ea
- Action: Rotary
- Actuator: Front Lever
- Amperage Rating: 30
- Color: Gray
- Dimensions: 5-7/8 in H x 3 in W x 4-1/16 in D
- Enclosure: NEMA 7C/7D/9E/9F/9G
- Frequency Rating: 50/60
- Material: Aluminum
- Number of Poles: 2
- Power Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
- Series: XS Series
- Type: 1-Phase Feed-Thru
- Voltage Rating: 120/277
Killark Tumbler Switch Complete Unit, 1-Phase Feed-Thru, Series: XS Series, 120/277 VAC, 30 A, 50/60 Hz, 1 hp at 120 VAC, 2 hp at 240 VAC, 2 Poles, Rotary, Front Lever, NEMA 7C/7D/9E/9F/9G Enclosure, Aluminum, Gray, 5-7/8 in H x 3 in W x 4-1/16 in D
- Features
- Front lever rotary operated switch assemblies
- Standard provisions for padlocking in either ON or OFF position
- The lever is connected to a threaded stainless steel shaft which passes through the cover
