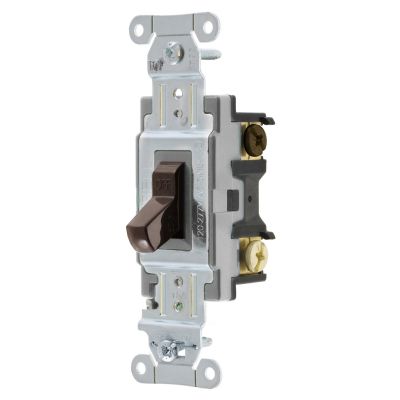

Hubbell Wiring CS315
Wiring Device-Kellems CS315 3-Way General Purpose Standard Toggle Switch, 120 to 277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact
General Purpose Switches
24410
CS315
Hubbell Wiring
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 15
- Color: Brown
- Contact Configuration: 2-Position
- Dimensions: 4.18 x 1.49 x 1.83
- Environmental Conditions: -40 to 75
- Material: Nylon
- Mounting: Threaded
- Number of Poles: 1
- Operating Cycles: 50000
- Power Rating: 4155
- terminal type: Side Wire
- Type: 3-Way General Purpose Standard
- Voltage Rating: 120 to 277
Wiring Device-Kellems, CS315, Toggle Switch, 3-Way General Purpose Standard, Series: CS Series, 120 to 277 VAC, 15 A, 4155 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Brown, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
- Features
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
- Thread cleaning captive mounting screw
