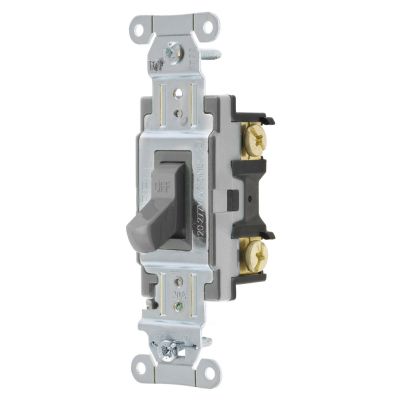

Hubbell Wiring CSB120GY
Wiring Device-Kellems CSB120GY 2-Position Standard Toggle Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
General Purpose Switches
6953065
CSB120GY
Hubbell Wiring
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 20
- Color: Gray
- Contact Configuration: 2-Position
- Dimensions: 4.18 x 1.49 x 1.83
- Environmental Conditions: -40 to 75
- Material: Nylon
- Mounting: Threaded
- Number of Poles: 1
- Operating Cycles: 50000
- Power Rating: 5540
- terminal type: Back/Side Wire
- Type: 2-Position Standard
- Voltage Rating: 120 to 277
Wiring Device-Kellems, CSB120GY, Toggle Switch, 2-Position Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Nylon, Gray, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in Dimensions
- Features
- Thread cleaning captive mounting screw
- Abuse-resistant nylon toggle
- Steel, zinc plated bridge is corrosion-resistant
