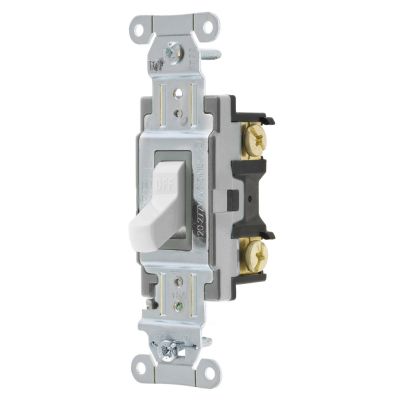

Hubbell Wiring CSB215W
Wiring Device-Kellems CSB215W Specification Grade AC Toggle Switch, 120/277 VAC, 15 A, 2 hp, 4155 W Power Rating, 2-Position Contact
General Purpose Switches
7469383
CSB215W
Hubbell Wiring
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 15
- Color: White
- Contact Configuration: 2-Position
- Dimensions: 4.18 in H x 1.49 in W x 1.75 in D
- Enclosure: NEMA WD-1
- Environmental Conditions: -40 to 75 deg C Temperature
- Material: Thermoset
- Mounting: Threaded
- Number of Poles: 2
- Operating Cycles: 50000
- Power Rating: 2 hp, 4155 W
- terminal type: Back/Side Wire
- Type: Specification Grade
- Voltage Rating: 120/277
Wiring Device-Kellems AC Toggle Switch, Specification Grade, 120/277 VAC, 15 A, 2 hp, 4155 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, NEMA WD-1 Enclosure, Threaded Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoset, White, Environmental Conditions: -40 to 75 deg C Temperature, 4.18 in H x 1.49 in W x 1.75 in D Dimensions
- Features
- Thread cleaning captive mounting screw
- Abuse-resistant nylon toggle
- Steel, zinc plated bridge is corrosion-resistant
- Indoor dry unless protected by additional means
- 14 to 10 AWG
- 1/2 hp at 120 VAC, 1-1/2 hp at 208 VAC, 2 hp at 240/277 VAC
- Nylon toggle
- Positive snap action
