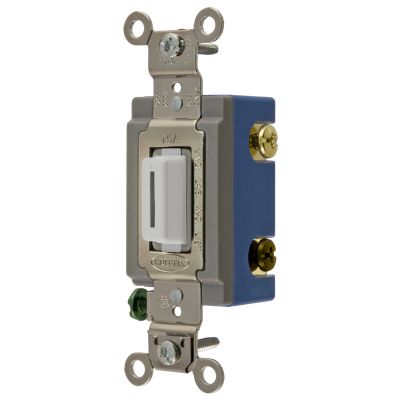

Hubbell Wiring HBL1203LW
Wiring Device-Kellems HBL1203LW 3-Way Extra Heavy Duty Industrial Grade Locking Standard AC Keylock Switch With Double Ended Key, 120 to 277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact
General Purpose Switches
7253882
HBL1203LW
Hubbell Wiring
$0.00
/ ea
- Actuator: Double Ended Key
- Amperage Rating: 15
- Color: White
- Connection: Screw Terminal
- Contact Configuration: 2-Position
- Dimensions: 4.06 x 1.31 x 1.13
- Environmental Conditions: -40 to 75
- Load: Inductive/Resistive
- Lock Type: Non-Cylindrical
- Material: Composite
- Power Rating: 4155
- Series: HBL
- Type: 3-Way Extra Heavy Duty Industrial Grade Locking Standard
- Voltage Rating: 120 to 277
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Three Way, 15A 120/277V AC, Back and Side Wired, White Key Guide
- Features
- Large brass binding head screws with deep slots
- Lock circuits on or off
- Strip gauge for accurate wiring
- One piece design engineered thermoset base for superior heat dissipation
- One piece design high impact resistant thermoplastic front for heavy duty industrial environments
- Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
- 1/2 hp at 120 VAC, 1-1/2 hp at 208 VAC, 2 hp at 240/277 VAC
- Steel nickel plated mounting strap provides a superior corrosion resistant finish
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
- Inductive or resistive load
- Snap action
- Indicator dot indicates on
- Non-cylindrical lock
