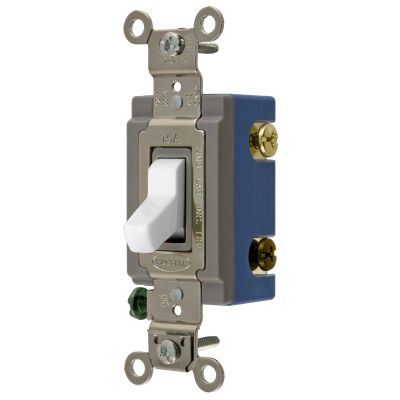

Hubbell Wiring HBL1204W
Wiring Device-Kellems HBL1204W 4-Way Extra Heavy Duty Industrial Grade Locking Standard AC Toggle Switch, 120 to 277 VAC, 15 A, 4155 W Power Rating, 2-Position Contact
General Purpose Switches
7184380
HBL1204W
Hubbell Wiring
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 15
- Color: White
- Contact Configuration: 2-Position
- Dimensions: 4.06 x 1.31 x 1.87
- Enclosure: NEMA WD-1
- Environmental Conditions: -40 to 75
- Material: Thermoset
- Mounting: Threaded
- Number of Poles: 2
- Operating Cycles: 50000
- Power Rating: 4155
- Series: HBL
- terminal type: Back/Side Wire
- Type: 4-Way Extra Heavy Duty Industrial Grade Locking Standard
- Voltage Rating: 120 to 277
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 15A 120/277V AC, Back and Side Wired, White Toggle
- Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
- One piece design engineered thermoset base for superior heat dissipation
- One piece design high impact resistant thermoplastic front for heavy duty industrial environments
- Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
- 1/2 hp at 120 VAC, 1-1/2 hp at 208 VAC, 2 hp at 240/277 VAC
- Steel nickel plated mounting strap provides a superior corrosion resistant finish
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
- Indoor dry unless protected by additional means
- Positive snap action
