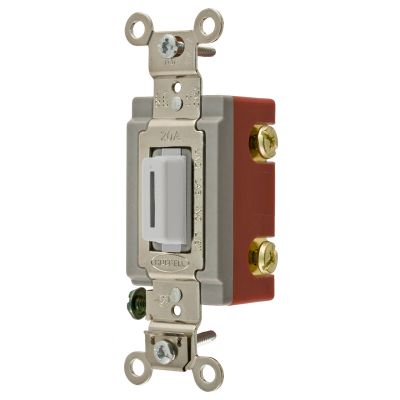

Hubbell Wiring HBL1222LW
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Double Pole, 20A 120/277V AC, Back and Side Wired, White Key Guide
Supporting Information
- Large brass binding head screws with deep slots|Lock circuits On or Off|Strip gauge for accurate wiring
- Large brass binding head screws with deep slots
- Lock circuits on or off
- Strip gauge for accurate wiring
- One piece design engineered thermoset base for superior heat dissipation
- One piece design high impact resistant thermoplastic front for heavy duty industrial environments
- Stainless steel automatic grounding clip assures grounding continuity between mounting strap and metal wall box
- One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
- Steel nickel plated mounting strap provides a superior corrosion resistant finish
- Thread cleaning captive mounting screw
- Prominent amperage marking on mounting strap allows easy identification of rating
- Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
- Elastomer rocker assures quiet operation and precise timing
- Permanently lubricated assembly provides long life and trouble free operation
- One piece rivetless copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
- Large silver alloy contacts reduce contact erosion and prevent welding, providing long life
- Inductive or resistive load
- Snap action
- Indicator dot indicates on
- Non-cylindrical lock
- 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
- Brand: Hubbell WiringActuator: Double Ended KeyAmperage Rating: 20Color: WhiteConnection: Screw TerminalContact Configuration: 2-PositionDimensions: 4.06 x 1.31 x 1.13Environmental Conditions: -40 to 75
