Hubbell Wiring HBL1222RKL

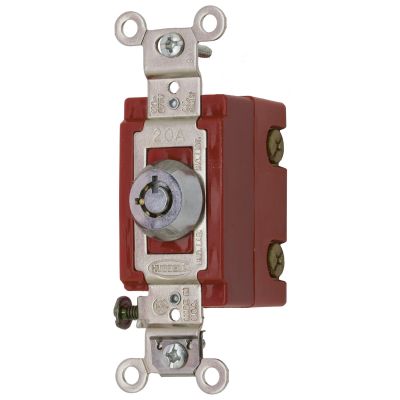

Wiring Device-Kellems HBL HBL1222RKL Standard AC Barrel Key Extra Heavy Duty General Purpose Locking Switch, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
General Purpose Switches
5952358
HBL1222RKL
Hubbell Wiring
$0.00
/ ea
- Actuator: Cylindrical Key
- Amperage Rating: 20
- Color: Polished Chrome
- Connection: Screw Terminal
- Contact Configuration: 2-Position
- Dimensions: 4.06 x 1.25 x 2.02
- Environmental Conditions: -40 to 75
- Load: Inductive/Resistive
- Lock Type: Cylindrical
- Material: Composite
- Number of Poles: 2
- Power Rating: 5540
- Type: Standard AC Barrel Key Extra Heavy Duty General Purpose
- Voltage Rating: 120 to 277
Wiring Device-Kellems, HBL1222RKL, Locking Switch, Standard AC Barrel Key Extra Heavy Duty General Purpose, Series: HBL, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Inductive/Resistive, Cylindrical Key Actuator, Screw Terminal Connection, Threaded Mounting, Composite, Polished Chrome, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.25 x 2.02 in Dimensions
- Features
- Large brass binding head screws with deep slots
- Lock circuits ON/OFF
- Strip gauge for accurate wiring
