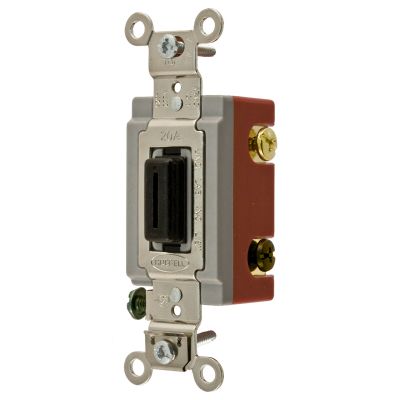

Hubbell Wiring HBL1224L

Wiring Device-Kellems HBL HBL1224L 4-Way Extra Heavy Duty General Purpose Standard Locking Switch With Key, 120 to 277 VAC, 20 A, 5540 W Power Rating, 2-Position Contact
General Purpose Switches
134557 HBL1224L
Hubbell Wiring
$0.00 / ea

  • Actuator: Double Ended Key
  • Amperage Rating: 20
  • Color: Black
  • Connection: Screw Terminal
  • Contact Configuration: 2-Position
  • Dimensions: 4.06 x 1.31 x 1.13
  • Environmental Conditions: -40 to 75
  • Load: Inductive/Resistive
  • Lock Type: Non-Cylindrical
  • Material: Composite
  • Number of Poles: 2
  • Power Rating: 5540
  • Type: 4-Way Extra Heavy Duty General Purpose Standard
  • Voltage Rating: 120 to 277
Switches and Lighting Controls,Extra Heavy Duty Industrial Grade, Locking Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Black Key Guide
  • Features
  • Large brass binding head screws with deep slots
  • Lock circuits ON/OFF
  • Strip gauge for accurate wiring
