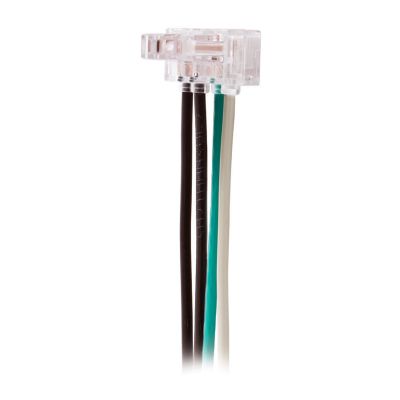

Hubbell Wiring SNAPSPP1NA
Wiring Device-Kellems SNAPConnect SNAPSPP1NA 2-Position 4-Wire General Purpose Heavy Duty Right Angle Standard Screw Mount Switch Pigtailed Connector With 6 in Lead, 12 AWG Solid Wire, Fully Insulated Insulation, Polycarbonate
General Purpose Switches
7369255
SNAPSPP1NA
Hubbell Wiring
$0.00
/ ea
- Color: Clear
- Dimensions: 6.5 in L x 1.39 in W x 0.84 in H
- Insulation Type: Fully Insulated
- Material: Polycarbonate
- Specifications: 15/20 A, Connectorized Connection, Threaded Mount, 5540 W, Industrial/Commercial Grade, 1-Pole, 2-Position Contact, Positive Snap Action, 50000 Operating Cycle
- Temperature Rating: -40 to 75
- Type: 2-Position 4-Wire General Purpose Heavy Duty Right Angle Standard Screw Mount
- Voltage Rating: 120/277
- Wire size: 12
- Wire Type: Solid
Wiring Device-Kellems, SNAPSPP1NA, Switch Pigtailed Connector, 2-Position 4-Wire General Purpose Heavy Duty Right Angle Standard Screw Mount, Series: SNAPConnect, Solid Wire, 12 AWG Wire, Fully Insulated Insulation, 120/277 VAC, Specifications: 15/20 A, Connectorized Connection, Threaded Mount, 5540 W, Industrial/Commercial Grade, 1-Pole, 2-Position Contact, Positive Snap Action, 50000 Operating Cycle, -40 to 75 deg C, Polycarbonate, Clear, 6.5 in L x 1.39 in W x 0.84 in H Dimensions
- Features
- Clear terminal housing
- No exposed live parts
- Quick connect terminations
- Without enclosure
