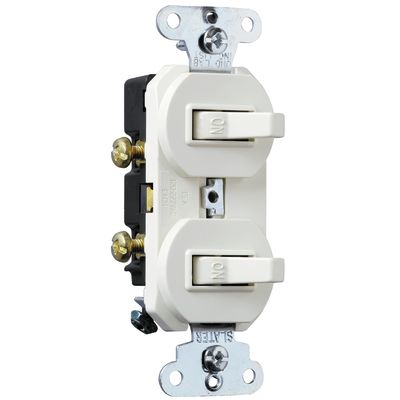

Legrand 690-W

Pass & Seymour 690-W 3-Wire Non-Grounding Duplex Combination Switch, 15 A, 120/277 VAC, 2 Poles
General Purpose Switches
30946 690-W
Legrand
$0.00 / ea

Legrand 690-W
  • Actuator: Toggle
  • Color: White
  • Electrical Ratings: 15 A, 120/277 VAC
  • Enclosure: NEMA 5-15R
  • Material: Thermoplastic
  • Mounting: Wall
  • Number of Poles: 2
  • Size: 3.3 in H x 1.32 in W x 0.94 in D
  • Type: 3-Wire Non-Grounding Duplex
Pass & Seymour Combination Switch, 3-Wire Non-Grounding Duplex, 15 A, 120/277 VAC, 2 Pole, Toggle, NEMA 5-15R Enclosure, Wall, 3.3 in H x 1.32 in W x 0.94 in D, Thermoplastic, White
QTY
Add to Wishlist
  • Features
  • Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects
  • Easily accessible break OFF separate or common feed
  • Long life red neon lamp in pilot light rated 1/25 W, 125 VAC
  • Side wire 12 to 14 AWG
  • Two devices fit into the space of one
  • Grounding combination devices meet NEC requirements
