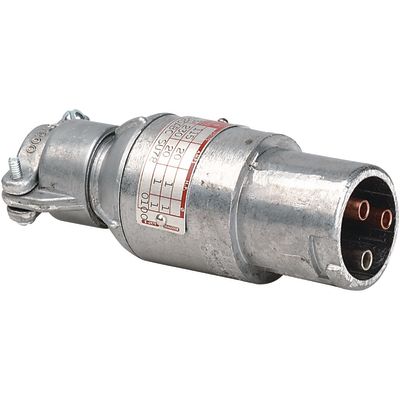

Hubbell Killark KP-20ABC
Killark KP-20ABC KP Series 1-Phase Pin and Sleeve Plug With (3) Grommets, 115/230 VAC, 20 A, 3 Poles, 2 Wires, Gray
Plugs Connectors
145672
KP-20ABC
Hubbell Killark
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Dimensions: 6-3/8 in L x 1-7/8 in W x 1-7/8 in H
- Frequency Rating: 60
- Horsepower: 1
- Material: Copper Free Aluminum
- Nema Rating: NEMA 7C/7D
- Number of Poles: 3
- Number Of Wires: 2
- Series: KP Series
- Type: 1-Phase
- Voltage Rating: 115/230
Killark Pin and Sleeve Plug, 1-Phase, Series: KP Series, 115/230 VAC, 20 A, 1 hp, 60 Hz, 3 Poles, 2 Wires, NEMA 7C/7D, Copper Free Aluminum, Gray, 6-3/8 in L x 1-7/8 in W x 1-7/8 in H
- Features
- Suitable in hazardous locations due to the presence of flammable vapors or gases, where a heavy duty plug and receptacle is necessary, where a connection is required for portable or movable equipment such as tools, motors, hand lights
- Delayed action contacts
- Plugs with a wide range of grommet openings
- Extra long grounding pole makes contact first and breaks contact last
- Heavy duty construction to withstand rough and constant usage
