Hubbell Wiring H320C

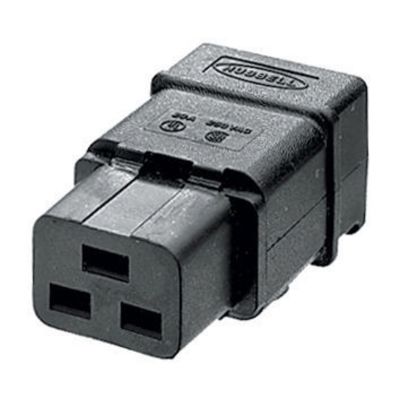

Wiring Device-Kellems H320C Female Grounding Insulated Cord Mount Straight Blade Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black
Plugs Connectors
1555048
H320C
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 20
- Color: Black
- Cord Diameter: 0.275 to 0.475
- Dimensions: 2.74 x 1.42 x 1.36
- Enclosure: IP20
- Grade: Commercial
- Material: Nylon
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Grounding Insulated Cord Mount
- Voltage Rating: 250
Straight Blade Devices, IEC 320 Devices, Female Connector, 16A 250V, International Rated, Pressure Screw Terminal, Black, Single Pack.
- Features
- Hinged one-piece body design for easy assembly
- Two captive multiple drive assembly screws
- Nylon-black housing material, retainer material and cord clamp material
- 0.04 in brass contact blades material
- #8-32 steel, (green finish) ground screw material
- Nylon base
- 0.032 in brass power contact material
- Withstands 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL498 (brass, white, green) terminal identification
- 16 to 12 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device
- -40 to 75 deg C operating temperature
