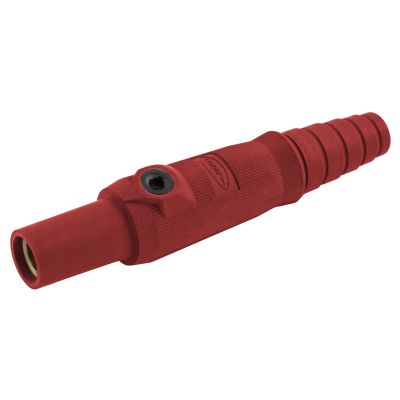

Hubbell Wiring HBL15FR
Wiring Device-Kellems HBL15FR 15 Series 1-Pole Female Insulated Non-Metallic Standard Single Pole Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Set Screw Connection
Plugs Connectors
7657191
HBL15FR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 150
- Color: Red
- Connection Type: Set Screw
- Contact Material: Brass
- Dimensions: 0.68 in Dia x 4.6 in L
- Housing Material: Non-Metallic
- Mounting Type: SC/PPC/Cord
- Series: 15 Series
- Specifications: 1-Conductor, 1-Pin
- Temperature Rating: -40 to 75
- Type: 1-Pole Female Insulated Non-Metallic Standard
- Voltage Rating: 600 VAC/250 VDC
- Wire size: 8 to 2
Wiring Device-Kellems Single Pole Plug, 1-Pole Female Insulated Non-Metallic Standard, Series: 15 Series, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Set Screw Connection, Brass Contact, Non-Metallic Housing Material, SC/PPC/Cord Mounting, Specifications: 1-Conductor, 1-Pin, -40 to 75 deg C, Red, 0.68 in Dia x 4.6 in L
- Features
- Insulgrip® style housing for superior gripping conforms to the user's hand making it easy to connect and disconnect, even with gloves on
- Easily identifiable cable cut-off points for secure fit allows you to easily customize and cut the housing to the required/correct cable size
- Rounded corners reduce the possibility of catching or snagging on structures or equipment
- Non-conductive retaining screw locks contacts in place and allows for easy installation, prevents contact movement within housing
- Recessed mounting screw minimizes screwdriver slippage
- Lock symbol aids in the mating of devices and provides a clear indication that the devices are properly connected
- With lock indicator symbol making mating clear and simple, devices can lock 180 deg to prevent unintended disconnects
- Provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends product life
- High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Extra long non-conductive inner sleeve reduces force required to install housing over contacts, easier to rotate contact in body for installing retaining screw
- Engineered body design makes installation simple with no need for additional tools and the non-metallic retaining screw helps to make operation safe for all involved
- Strip gauge molded into every plug and receptacle housing, simplifies installation and saves time
- Indoor dry unless protected by additional means
- Accommodates wide range of cables
- -40 deg C without impact, -25 deg C with impact minimum continuous, 75 deg C maximum continuous
