Hubbell Wiring HBL18400MBN

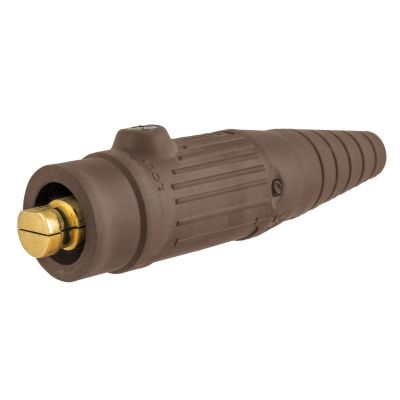

Wiring Device-Kellems HBL18400MBN 18 Series Male Standard In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Cu Wire, Screw Terminal Connection
Plugs Connectors
7746028
HBL18400MBN
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 400
- Color: Brown
- Connection Type: Screw Terminal
- Contact Material: Brass
- Dimensions: 1.85 in Dia x 6.21 in L
- Housing Material: Composite
- Mounting Type: SC/PPC/Cord
- Series: 18 Series
- Specifications: 1-Pole, 1-Wire
- Type: Male Standard
- Voltage Rating: 600 VAC/250 VDC
- Wire size: 4 to 4/0 AWG Cu
Wiring Device-Kellems In-Line Plug, Male Standard, Series: 18 Series, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Cu Wire, Screw Terminal Connection, Brass Contact, Composite Housing Material, SC/PPC/Cord Mounting, Specifications: 1-Pole, 1-Wire, Brown, 1.85 in Dia x 6.21 in L
- Features
- Double set screw for the highest performance and coolest running connection
- Keyed nylon interior for ease of assembly
- Ribbed thermoplastic elastomer body for a greater hold when plugging and unplugging the device
- Non-metallic retaining screw for user safety
- UL type 4X environmental rating suitable for extreme outdoor conditions
- Ball nose version
