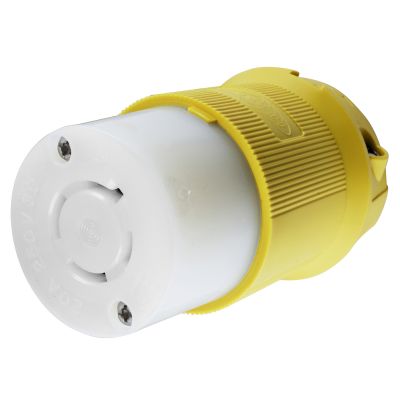

Hubbell Wiring HBL24CM23

Wiring Device-Kellems Twist-Lock Insulgrip HBL24CM23 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount Female Connector, 250 Delta VAC, 20 A, 3 Poles, 4 Wires, Yellow
Plugs Connectors
6905975 HBL24CM23
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL24CM23
  • Amperage Rating: 20
  • Color: Yellow
  • Cord Diameter: 0.35 to 1.15
  • Dimensions: 2.33 x 2.33 x 3.86
  • Enclosure: IP20
  • Grade: Industrial/Marine
  • Horsepower: 3
  • Material: Composite
  • Nema Rating: L15-20R/WD1/WD5
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: 3-Phase Heavy Duty Isolated Grounding Standard Sized Cord Mount
  • Voltage Rating: 250 Delta VAC
Twist-LockпїЅ Marine Grade, Female InsulgripпїЅ Connector Body, 20A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20R, Screw Terminal Nylon
QTY
Add to Wishlist
  • Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion resistant
