Hubbell Wiring HBL2621S

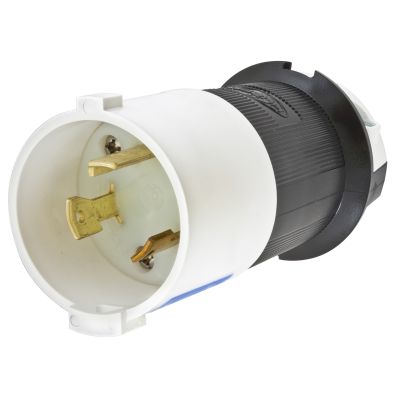

Wiring Device-Kellems Twist-Lock Safety-Shroud HBL2621S 1-Phase Grounding Cord Mount Locking Plug, 250 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Plugs Connectors
4486453
HBL2621S
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Black/White
- Cord Diameter: 0.36 to 0.93
- Dimensions: 2.26 x 2.26 x 4.21
- Enclosure: IP20
- Grade: Industrial
- Horsepower: 2
- Material: Composite
- Nema Rating: L6-30P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Grounding Cord Mount
- Voltage Rating: 250
Locking Devices, Twist-LockпїЅ, Safety-ShroudпїЅ, Male Plug, 30A 250V AC, 2-Pole 3-Wire Grounding, L6-30P, Screw Terminal, Black and White Nylon Body, White PBT Shroud.
- Features
- Withstands 2000 VAC dielectric voltage
- 10 to 8 AWG wire
- 16 to 8 AWG stranded copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498
- #10-32 brass (Phillips/slotted/Robertson) terminal screws
- Natural white nylon blade holder material and cord clamp material
- Superior cord grip design protects terminations from excess strain
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Integral dust shield protects wiring chamber from dust or contaminants
- Clear polycarbonate terminal retainer
- Indoor dry unless protected by additional means
