Hubbell Wiring HBL2623F

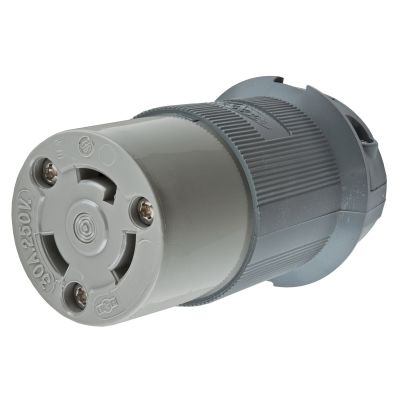

Wiring Device-Kellems Insulgrip Twist-Lock HBL2623F Locking Connector, 250 VAC, 30 A, 2 Poles, 3 Wires, Gray
Plugs Connectors
7090072
HBL2623F
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Gray
- Cord Diameter: 0.36 to 0.93
- Dimensions: 2.26 in Dia x 3.86 in L
- Enclosure: IP20
- Material: Nylon
- Nema Rating: NEMA L6-30R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Voltage Rating: 250
Twist-LockпїЅ InsulgripпїЅ Connector, 30A, 250V AC, 2-Pole, 3 Wire Grounding, NEMA L6,Heat Stabilized Nylon
- Features
- 2000 VAC minimum withstand dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- 30 A 10 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
- HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
- Natural white nylon blade holder
- Clear polycarbonate terminal retainer material
- Brass blade
- Nickel plated cold rolled steel terminal clamp
- #10-32 bronze terminal screw
- #10-32 bronze ground screw
- Gray nylon cord clamp screw
- Stainless steel body holding screw
- Superior cord grip design protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- High temp style
