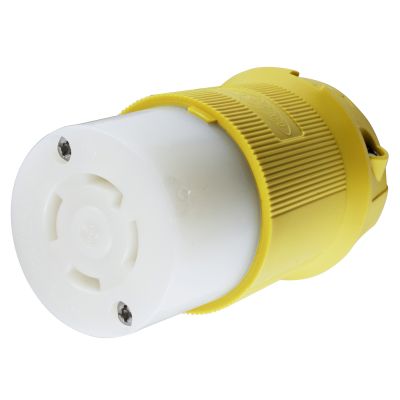

Hubbell Wiring HBL27CM13

Wiring Device-Kellems Twist-Lock Insulgrip HBL27CM13 Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant Female Connector, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Yellow
Plugs Connectors
7224779 HBL27CM13
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL27CM13
  • Amperage Rating: 30
  • Color: Yellow
  • Cord Diameter: 0.35 to 1.15
  • Dimensions: 2.33 x 2.33 x 3.86
  • Enclosure: IP20
  • Grade: Industrial/Marine
  • Horsepower: 2
  • Material: Nylon
  • Nema Rating: L14-30R/WD1/WD5
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: Heavy Duty Isolated Grounding Standard Sized Cord Mount Corrosion Resistant
  • Voltage Rating: 125/250
Locking Devices, Twist-LockпїЅ, Marine Grade, Female InsulgripпїЅ Connector Body, 30A, 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14-30R, Screw Terminal, Yellow Nylon.
QTY
Add to Wishlist
  • Features
  • Nickel plated contacts and stainless steel screws provide maximum corrosion resistance
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design for flat cable protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Corrosion resistant
