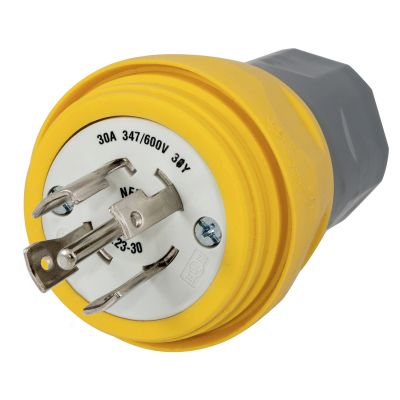

Hubbell Wiring HBL28W83
Wiring Device-Kellems Twist-Lock HBL28W83 3-Phase Grounding Male Portable Standard Watertight Cord Mount Locking Plug, 347/600 VAC, 30 A, 4 Poles, 5 Wires, Yellow
Plugs Connectors
7710345
HBL28W83
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 3/8 to 1
- Dimensions: 2.77 x 2.77 x 3.94
- Enclosure: NEMA 4/4X/6P/IP65/IP66/IP67
- Grade: Commercial/Industrial
- Material: Elastomer/Composite
- Nema Rating: L23-30P
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 60
- terminal type: Screw
- Type: 3-Phase Grounding Male Portable Standard Watertight Cord Mount
- Voltage Rating: 347/600
Wiring Device-Kellems Twist-Lock Locking Plug, 3-Phase Grounding Male Portable Standard Watertight Cord Mount, 347/600 VAC, 30 A, 4 Pole, 5 Wires, L23-30P NEMA Rating, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 2.77 x 2.77 x 3.94 in
- Features
- Smooth body design minimizes collection points simplifying the washdown process
- Strain relief nut always seals on the body, minimizing debris collection
- Stainless steel hardware and corrosion-resistant connection points
- Water and dusttight housing
