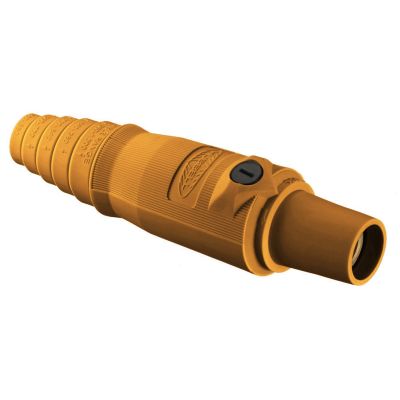

Hubbell Wiring HBL300FO
Wiring Device-Kellems HBL300FO 16 Series 1-Pole Female Heavy Duty Industrial Grade Standard Single Pole Plug, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12 NEMA Rating
Plugs Connectors
7404909
HBL300FO
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 300
- Color: Orange
- Connection Type: Pressure Screw Terminal
- Contact Material: Brass
- Dimensions: 1.78 in Dia x 7.1 in L
- Housing Material: Composite
- Mounting Type: SC/PPC/Cord
- Nema Rating: 3R/4X/12
- Series: 16 Series
- Specifications: 1 ph, 1-Wire, 240000 W, Type SC/PPC Cord
- Type: 1-Pole Female Heavy Duty Industrial Grade Standard
- Wire size: 4 to 2/0
Heavy Duty Products, Single Pole Devices, Industrial Grade, Female, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Orange
- Features
- Extra long non-conductive inner sleeve
- Easier to rotate contact in body for installing retaining screw
- Turn and lock symbol aids in the mating of devices
- Easily identifiable cable with cut off points for secure fit
- Makes cutting to the correct cable size very easy
- Accommodates wide range of cables
- High conductivity brass contact provides improved performance by helping to reduce operating temperatures and extends life
- Strip gauge molded into every plug and receptacle housing
- Simplifies installation and saves time
