Hubbell Wiring HBL300FY

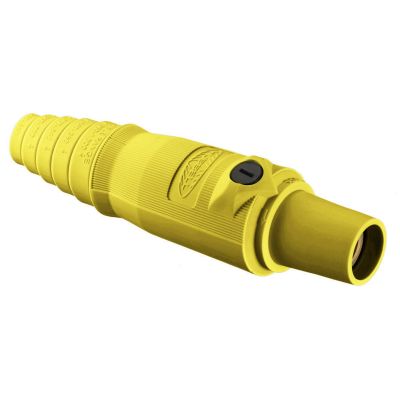

Wiring Device-Kellems HBL300FY 16 Series 1-Pole Female Heavy Duty Standard In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection
Plugs Connectors
7404908
HBL300FY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 300
- Color: Yellow
- Connection Type: Pressure Screw Terminal
- Contact Material: Brass
- Dimensions: 1.06 in Dia x 7.1 in L
- Housing Material: Composite
- Mounting Type: SC/PPC/Cord
- Series: 16 Series
- Specifications: 1-Pole, 1 ph, 1-Wire, 1-Pin, 240000 W
- Type: 1-Pole Female Heavy Duty Standard
- Voltage Rating: 600 VAC/250 VDC
- Wire size: 4 to 2/0
Wiring Device-Kellems, HBL300FY, In-Line Plug, 1-Pole Female Heavy Duty Standard, Series: 16 Series, 600 VAC/250 VDC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, Brass Contact, Composite Housing Material, Cable Mounting, Specifications: 1-Pole, 1 ph, 1-Wire, 1-Pin, 240000 W, 90 deg C, Yellow, 1.06 in Dia x 7.1 in L Dimensions
- Features
- Extra long non-conductive inner sleeve
- Turn and lock symbol aids in the mating of devices
- Easily Identifiable cable with cut off points for secure fit
