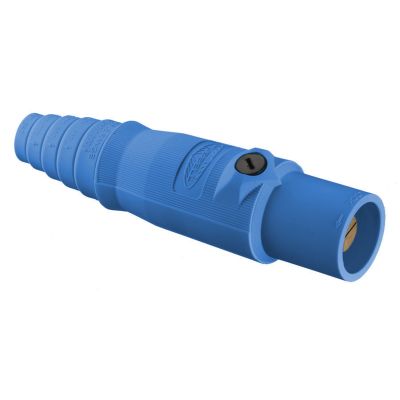

Hubbell Wiring HBL300MBL
Wiring Device-Kellems HBL300MBL 16 Series 1-Pole Heavy Duty Industrial Grade Male Standard Single Pole Plug, 600 VAC/250 VDC, 300 A, 4 to 2/0 AWG Wire, Pressure Screw Terminal Connection, 3R/4X/12 NEMA Rating
Plugs Connectors
6845940
HBL300MBL
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 300
- Color: Blue
- Connection Type: Pressure Screw Terminal
- Contact Material: Brass
- Dimensions: 1.78 in Dia x 7.1 in L
- Housing Material: Composite
- Mounting Type: SC/PPC/Cord
- Nema Rating: 3R/4X/12
- Series: 16 Series
- Specifications: 1 ph, 1-Wire, 240000 W, Type SC/PPC Cord
- Type: 1-Pole Heavy Duty Industrial Grade Male Standard
- Voltage Rating: 600 VAC/250 VDC
- Wire size: 4 to 2/0
Heavy Duty Products, Single Pole Devices, Industrial Grade, Male, Plug, 300A 600V AC/DC, Single Conductor, Double Set Screws, Blue
- Features
- Insulgrip® style housing for superior gripping
- Makes it easy to connect and disconnect, even with gloves on
- Non-conductive retaining screw locks contacts in place
- Prevents contact movement within housing
- Special screw thread requires fewer turns than most competitors and reduces the risk of a conductive screw being substituted
- Large raised alignment arrow aids in the mating of devices
- Double cam design provides high contact pressure and vibration resistant connection, which helps reduce operating temperatures and extends life
