Hubbell Wiring HBL3100CS1WR

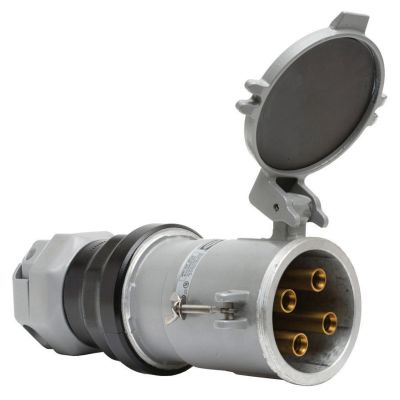

Wiring Device-Kellems Insulgrip HBL3100CS1WR Female Heavy Duty Insulated Standard Watertight Cord Mount Pin and Sleeve Connector, 600 VAC/250 VDC, 100 A, 2 Poles, 3 Wires, Black/Gray
Plugs Connectors
7120926 HBL3100CS1WR
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL3100CS1WR
  • Amperage Rating: 100
  • Color: Black/Gray
  • Dimensions: 11.7 in L x 4.5 in H
  • Enclosure: IP67
  • Grade: Industrial
  • Material: Composite
  • Nema Rating: 4X
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: Female Heavy Duty Insulated Standard Watertight Cord Mount
  • Voltage Rating: 600 VAC/250 VDC
Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 100A 600V AC, 2-Pole 3-Wire Grounding Style 1,Terminal Screws
QTY
Add to Wishlist
  • Features
  • O-ring seal provides a watertight and dusttight seal, prevents contamination from entering wire chamber
  • Closure cap with neoprene gasket for 4X watertight seal when not in use
  • Lid stay allows for a hands free means of holding the cover in the open position
  • All brass sleeve contacts provide reliable electrical contact
