Hubbell Wiring HBL3100PS1WR

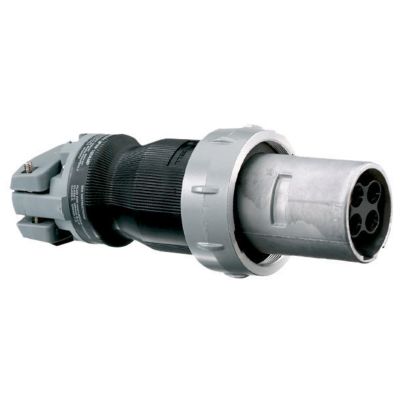

Wiring Device-Kellems Insulgrip HBL3100PS1WR Heavy Duty Male Reverse Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 100 A, 2 Poles, 3 Wires, Black/Gray
Plugs Connectors
7014619
HBL3100PS1WR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 100
- Color: Black/Gray
- Dimensions: 3.7 in Dia x 10.7 in L
- Frequency Rating: 50/400
- Grade: Industrial
- Material: Composite
- Nema Rating: 4X
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: Heavy Duty Male Reverse Standard Watertight Cord Mount
- Voltage Rating: 600 VAC/250 VDC
Wiring Device-Kellems, HBL3100PS1WR, Pin and Sleeve Plug, Heavy Duty Male Reverse Standard Watertight Cord Mount, Series: HBL, 600 VAC/250 VDC, 100 A, 50/400 Hz Frequency, 2 Pole, 3 Wires, 4X NEMA Rating, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 3.7 in Dia x 10.7 in L Dimensions
- Features
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Locking ring provides UL Type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- Pin chamber confines arcing within the interior chamber
