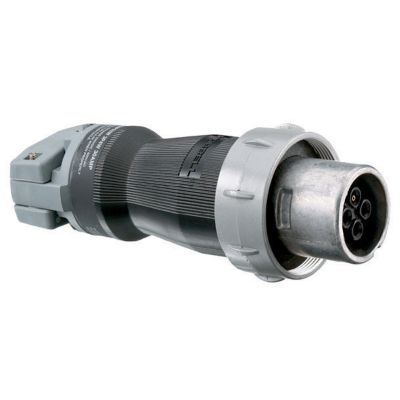

Hubbell Wiring HBL3200PS2WR
Wiring Device-Kellems Pin and Sleeve Plug, Male Reversed Watertight Standard Cord Mount, 600 VAC/250 VDC, 200 A, 2 Pole, 3 Wires, Industrial Grade, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/Gray, 6.7 in Dia x 11.13 in L
Supporting Information
- Beryllium copper spring maintains high unit pressure on mating sleeves|All-Brass sleeve contacts provide reliable electrical contact|Locking ring provides UL Type 4X watertight, dust-tight seal|Pin chamber confines arcing within the interior chamber|Aluminum plug shroud, nickel plated brass clamp nut, Rynite SST35 gland cap, thermoset polyester retainer, neoprene O-ring, gaskets and seals|Catalog number and rating visible while in use|Up to 1000 connect and disconnect cycles at full rated current and voltage endurance
- Brand: Hubbell WiringAmperage Rating: 200Color: Black/GrayDimensions: 6.7 in Dia x 11.13 in LGrade: IndustrialMaterial: CompositeNema Rating: NEMA 4XNumber of Poles: 2Number Of Wires: 3Series: HBLTemperature Rating: -40 to 75
