Hubbell Wiring HBL4200PS1W

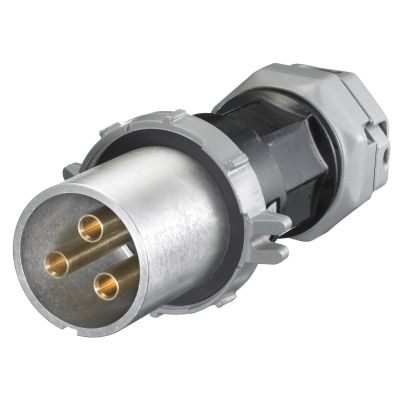

Wiring Device-Kellems Insulgrip HBL4200PS1W Type 1 Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 200 A, 3 Poles, 4 Wires, Black/Gray
Plugs Connectors
4559330
HBL4200PS1W
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 200
- Color: Black/Gray
- Dimensions: 6.35 in Dia x 11.13 in L
- Frequency Rating: 50/400
- Grade: Industrial
- Material: Composite
- Nema Rating: 4X
- Number of Poles: 3
- Number Of Wires: 4
- Temperature Rating: -40
- terminal type: Pressure Screw
- Type: Type 1 Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount
- Voltage Rating: 600 VAC/250 VDC
Wiring Device-Kellems Insulgrip Pin and Sleeve Plug, Type 1 Grounding Heavy Duty Male Non-NEMA Portable Standard Watertight Cord Mount, 600 VAC/250 VDC, 200 A, 50/400 Hz Frequency, 3 Pole, 4 Wires, 4X NEMA Rating, Industrial Grade, -40 deg C, Pressure Screw Terminal, Composite, Black/Gray, 6.35 in Dia x 11.13 in L
- Features
- Locking ring provides UL type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- All brass sleeve contacts provide reliable electrical contact
