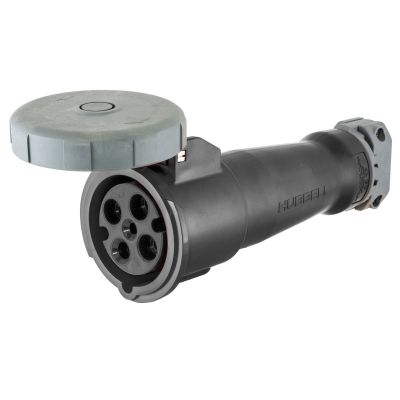

Hubbell Wiring HBL460C5W

Wiring Device-Kellems HBL460C5W Female Grounding Watertight Cord Mount Pin and Sleeve Connector, 600 VAC, 60 A, 3 Poles, 4 Wires, Black
Plugs Connectors
24191 HBL460C5W
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL460C5W
  • Amperage Rating: 60
  • Color: Black
  • Dimensions: 5.1 in Dia x 11.15 in L
  • Enclosure: IP67
  • Grade: Industrial
  • Material: Composite
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: Female Grounding Watertight Cord Mount
  • Voltage Rating: 600
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight
QTY
Add to Wishlist
  • Features
  • Self-closing gasketed cover
  • Super tough insulated non-metallic housing
  • Watertight neoprene glad seal to prevent water ingress from entering at cable entrance
  • Sequential contact engagement to prevent a momentary over-voltage
  • Multi-contact spring provides and maintains high unit pressure on mating pins to minimize temperature rise
  • Withstands 3000 VAC dielectric voltage
  • Reinforced thermoplastic polyester covers and cord clamps
  • Solid neoprene gaskets and glands
  • 8 to 2 AWG copper terminal accommodation
