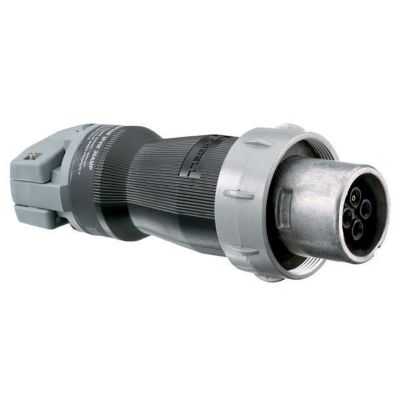

Hubbell Wiring HBL460PS1WR

Wiring Device-Kellems Insulgrip HBL460PS1WR Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 60 A, 3 Poles, 4 Wires, Black/Gray
Plugs Connectors
7278359 HBL460PS1WR
Hubbell Wiring
$0.00 / ea

Hubbell Wiring HBL460PS1WR
  • Amperage Rating: 60
  • Color: Black/Gray
  • Dimensions: 3.4 in Dia x 9.4 in L
  • Frequency Rating: 50/400
  • Grade: Industrial
  • Material: Composite
  • Nema Rating: 4X
  • Number of Poles: 3
  • Number Of Wires: 4
  • Temperature Rating: -40 to 75
  • terminal type: Pressure Screw
  • Type: Type 1 Grounding Heavy Duty Male Non-NEMA Portable Reverse Standard Watertight Cord Mount
  • Voltage Rating: 600 VAC/250 VDC
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 60A 600V AC, 3-Pole 4-Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight- Reversed
QTY
Add to Wishlist
  • Features
  • Beryllium copper spring maintains high unit pressure on mating sleeves
  • Locking ring provides UL type 4X watertight, dusttight seal
  • Catalog number and rating visible while in use
  • Pin chamber confines arcing within the interior chamber
