Hubbell Wiring HBL4723VY

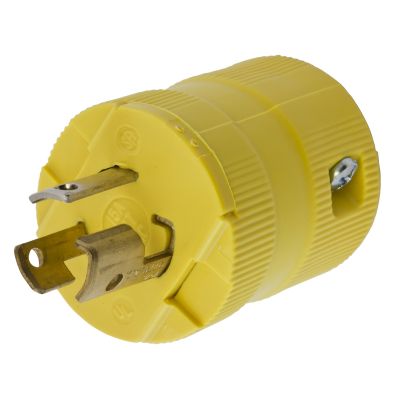

Wiring Device-Kellems Twist-Lock HBL4723VY 1-Phase Extra Heavy Duty Grounding Cord Mount Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Plugs Connectors
415403
HBL4723VY
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Cord Diameter: 0.22 to 0.66
- Dimensions: 1.49 x 1.49 x 1.87
- Enclosure: IP20
- Grade: Industrial
- Horsepower: 1/2
- Material: Nylon
- Nema Rating: L5-15P
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: 1-Phase Extra Heavy Duty Grounding Cord Mount
- Voltage Rating: 125
Locking Devices, Twist-LockпїЅ, ValiseпїЅ, Male Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Yellow Nylon.
- Features
- Withstands 2000 VAC dielectric voltage
- 14 to 12 AWG wire
- 14 AWG stranded copper wire terminal accommodation
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Brass blade, steel terminal screw and ground screw
- Steel zinc plated cord clamp screw, body holding screw
- Two captive multiple drive assembly screws
- Totally insulated impact and crush resistant nylon body
- Powerful cord grips prevent conductor slippage and strain on wiring terminals
- Yellow nylon blade holder, cord clamp
- Cold rolled steel nickel plated terminal clamp
- Indoor dry unless protected by additional means
