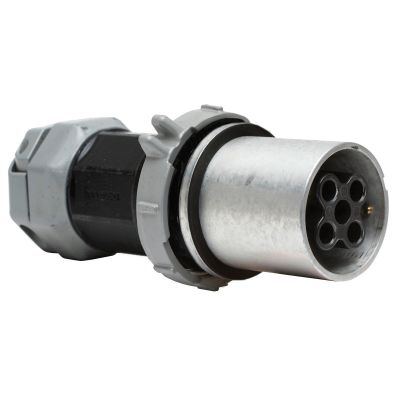

Hubbell Wiring HBL5100PS1WR
Wiring Device-Kellems Insulgrip HBL5100PS1WR Type 1 Grounding Heavy Duty Male Non-NEMA Reverse Standard Watertight Cord Mount Pin and Sleeve Plug, 600 VAC/250 VDC, 100 A, 4 Poles, 5 Wires, Black/Gray
Plugs Connectors
6810972
HBL5100PS1WR
Hubbell Wiring
$0.00
/ ea
- Amperage Rating: 100
- Color: Black/Gray
- Dimensions: 4 in Dia x 10.9 in L
- Frequency Rating: 50/400
- Grade: Industrial
- Material: Composite
- Nema Rating: 4X
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -40 to 75
- terminal type: Pressure Screw
- Type: Type 1 Grounding Heavy Duty Male Non-NEMA Reverse Standard Watertight Cord Mount
- Voltage Rating: 600 VAC/250 VDC
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Male, Plug, 100A 600V AC, 3-Pole 4- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight-
- Features
- Beryllium copper spring maintains high unit pressure on mating sleeves
- Locking ring provides UL type 4X watertight, dusttight seal
- Catalog number and rating visible while in use
- Pin chamber confines arcing within the interior chamber
